PRO XF Particulate Filter

  • Key Features & Benefits
  • Element technical information
  • Key Features & Benefits

    Designed for high flow applications and operating pressures up to 16 barg, PRO XF takes a revolutionary approach to the traditional fabricated flanged market – providing a compact and flexible modular design.

    Available as individual threaded and flanged filters, by integrating a filter ‘module’ with slim-line connectors, the entire package is ideal for a multi-banked solution.

    Ease of installation and maintenance has been a prime consideration in the design of PRO XF, minimising system downtime associated with servicing and maintenance and providing hugely improved operating efficiencies.

  • Element technical information
    Grade
    RX25
    RX5
    RX1
    RXA
    RAC
    Particle removal
    25 micron
    5 micron
    1 micron
    0.01 micron
    0.01 micron
    Maximum particle size class
    -
    3
    2
    1
    1
    Maximum working pressure
    16 barg 232 psig
    16 barg 232 psig
    16 ba 232 psig
    16 ba 232 psig
    16 ba 232 psig
    Pressure loss: clean & dry
    30 mbar 0.4 psi
    40 mbar 0.6 psi
    75 mbar 1.1 psi
    100 mbar 1.5 psi
    75 mbar 1.1 psi
    Pressure loss: element change
    400 mbar 6 psi
    400 mbar 6 psi
    400 mbar 6 psi
    400 mbar 6 psi
    at least every 6 months
    Maximum temperature
    120°C 248°F
    120°C 248°F
    120°C 248°F
    120°C 248°F
    50°C 122°F
    Element end cap colour
    Black
    Green
    Red
    Blue
    Black

The Ultimate in Filtration Performance

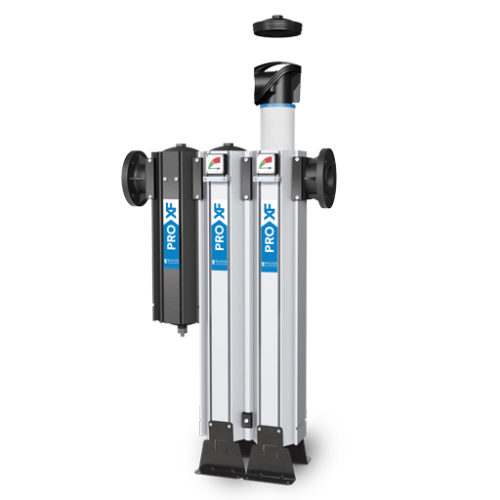

Modular Construction

Available as individual threaded and flanged filters, filters can be installed individually or banked together using slim-line connectors.

Service Friendly

Top loading design makes access to the internal filter element quick and simple, eliminating the need to remove drain during element change out.

Compact Design

PRO XF’s space efficient design is up to 65% lighter and 45% smaller when compared to comparative fabricated models.

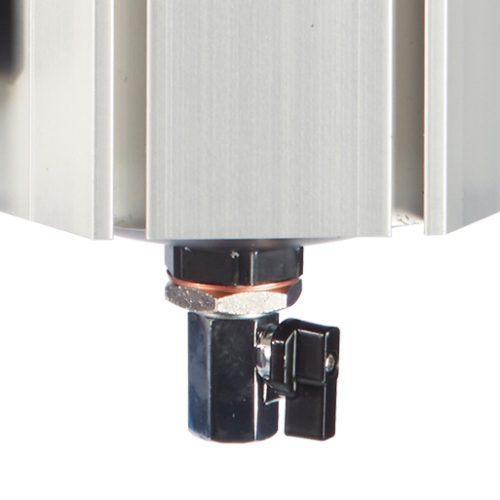

Externally Accessible Drain Valve

Unique easy access drain can be removed externally and is supplied as standard on all models.
