Ammonia and Refrigerant Filters
Walker Filtration researches, designs, and manufactures a comprehensive range of Ammonia and Refrigerant filters for use in specialist applications where the quality and cleanliness of the gas needs to be maintained to the highest level.

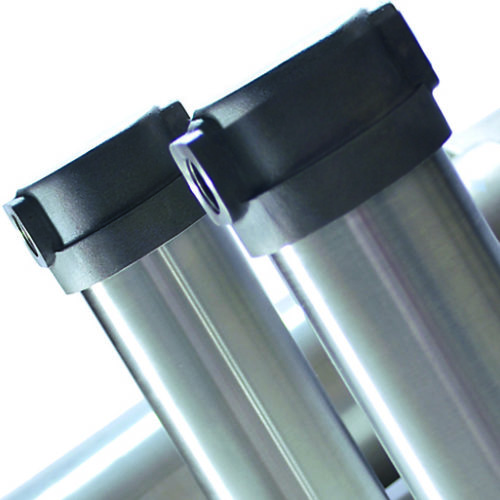

The range consists of eight stainless steel filter housings with connection sizes of ¼” to 2” with flow rates up to 675 scfm (1150 Nm³/h). This threaded range is precision engineered in high grade stainless steel.
These products are often installed within large industrial cooling systems and offer protection from the build-up of excessive amounts of oil on heat exchanger surfaces, prevent the blockage of tubes, valves, and expansion orifices, and also maintain the overall cleanliness and capacity of the system.
Our custom engineered filter media delivers exceptional filtration with minimum pressure drop. Threaded filters incorporate the unique Walker Filtration designed push-fit filter elements, which reduces maintenance time and allows the filter to be located within the most confined places.
Exceptional filtration whilst minimizing pressure drop.
- ELEMENT TECHNICAL INFORMATION
-
ELEMENT TECHNICAL INFORMATION
GradeX1 NH3XA NH3Particle removal1 micron0.01 micronMaximum temperature248°F 120°C248°F 120°CPressure loss - clean & dry1.1 psi 75 mbar1.5 psi 100 mbarPressure loss - oil saturated2.2 psi 150 mbar4.4 psi 300 mbarPressure loss - change element6.0 psi 400 mbar6.0 psi 400 mbarMaximum working vacuum232 psig 16 barg232 psig 16 bargPressure loss - change elementFull VacuumFull VacuumElement end cap materialStainless SteelStainless Steel
-
The Ultimate in Filtration Performance
Our custom engineered filter media delivers exceptional filtration with minimum pressure drop.

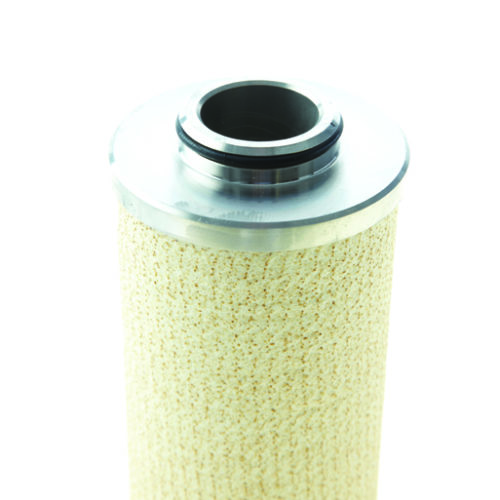

Push fit filter elements reduce maintenance time and minimize the bowl clearance required for servicing and element change out.
8 stainless steel filter housings with connection sizes of ¼” to 2” with flow rates up to 675 SCFM (1150 Nm³/h).
