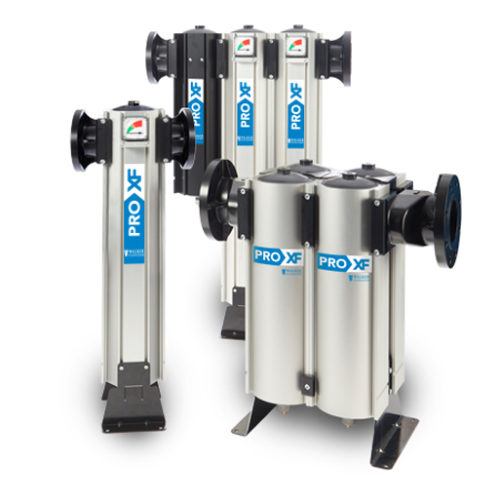

PRO XF Particulate Filter

  • Key Features & Benefits
  • Element technical information
  • Key Features & Benefits

    Designed for high flow applications and operating pressures up to 232 psig (16 barg), PRO XF takes a revolutionary approach to the traditional fabricated flanged market – providing a compact and flexible modular design.

    Available as individual threaded and flanged filters, by integrating a filter ‘module’ with slim-line connectors, the entire package is ideal for a multi-banked solution.

    Ease of installation and maintenance has been a prime consideration in the design of PRO XF, minimizing system downtime associated with servicing and maintenance and providing hugely improved operating efficiencies.

  • Element technical information
    Grade
    RX5
    RX1
    RXA
    RAC
    Particle removal
    5 micron
    1 micron
    0.01 micron
    0.01 micron
    Maximum particle size class*
    3
    2
    1
    1
    Maximum working pressure
    232 psig 16 barg
    232 psig 16 barg
    232 psig 16 barg
    232 psig 16 barg
    Pressure loss: clean & dry
    0.6 psi 40 mbar
    1.1 psi 75 mbar
    1.5 psi 100 barg
    1.1 psi 75 mbar
    Pressure loss: element change
    6 psi 400 mbar
    6 psi 400 mbar
    6 psi 400 mbar
    at least every 6 months
    Maximum temperature
    248°F 120°C
    248°F 120°C
    248°F 120°C
    122°F** 50°C**
    Element end cap color
    Green
    Red
    Blue
    Black

    *to ISO 8573-1:2010 **Maximum recommended operating temperature 122°F (50°C)

The Ultimate in Filtration Performance

Modular Construction

Available as individual threaded and flanged filters, filters can be installed individually or banked together using slim-line connectors.

Service Friendly

Top loading design makes access to the internal filter element quick and simple, eliminating the need to remove drain during element change out.

Compact Design

PRO XF’s space efficient design is up to 65% lighter and 45% smaller when compared to comparative fabricated models.

Externally Accessible Drain Valve

Unique easy access drain can be removed externally and is supplied as standard on all models.
