Alpha Medical Vacuum Filters

  • KEY FEATURES & BENEFITS
  • ELEMENT TECHNICAL INFORMATION
  • KEY FEATURES & BENEFITS

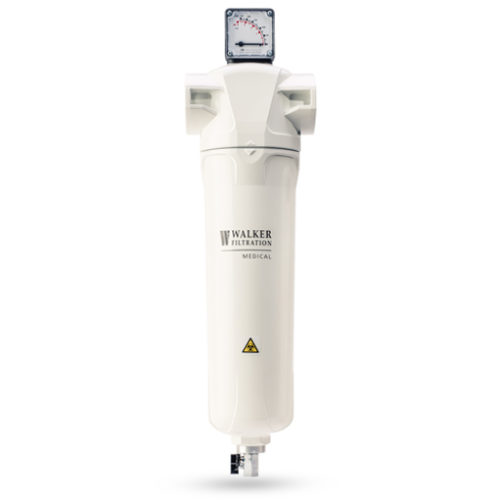

    Featuring an easily removable sterilizable vacuum drain flask, a unique push fit element and differential pressure monitor, Walker Filtration’s Alpha Medical Vacuum filters fully comply with global medical gas pipeline systems standards ISO7396-1, NFPA 99, HTM 02-01, and AS2896, providing peace of mind that potentially hazardous biological contagions will not be exhausted into the surrounding environment.



  • ELEMENT TECHNICAL INFORMATION
    Grade
    MV
    Particle removal efficiency
    > 99.97% @ 0.3 micron (compliant with HEPA and NFPA 99)
    Pressure loss - clean & dry
    ≤ 3 kPa (0.44 psig / 30 mbar)
    Maximum temperature
    140°F (60°C)
    Maximum working pressure
    7 psig (0.5 barg)
    Maximum working vacuum
    Full Vacuum
    Element end cap color
    Black

The Ultimate in Filtration Performance

Medical Grade Filter Element

Custom engineered filter media and deep pleat element technology provides minimal pressure loss and filtration efficiencies in excess of international medical gas standards.

Quick and Easy Maintenance

Unique push fit element design allows for easy maintenance and significantly reducing service and contact time with contaminated filter elements for maintenance engineers.

Product Safety in Mind

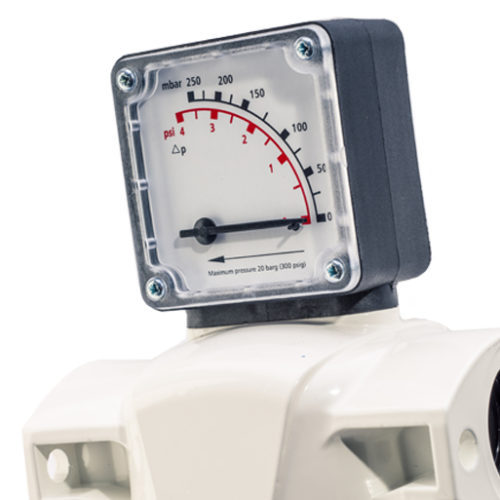

Easily removable sterilizable drain flask and differential pressure gauge supplied as standard.

International Medical Gas Standards

Fully compliant with global medical gas pipeline systems standards ISO 7396-1, NFPA 99, HTM 02-01, and AS 2896.

Corrosion Protection

Internal and external electrophoretic paint finish followed by a tough exterior polyester powder coating.
