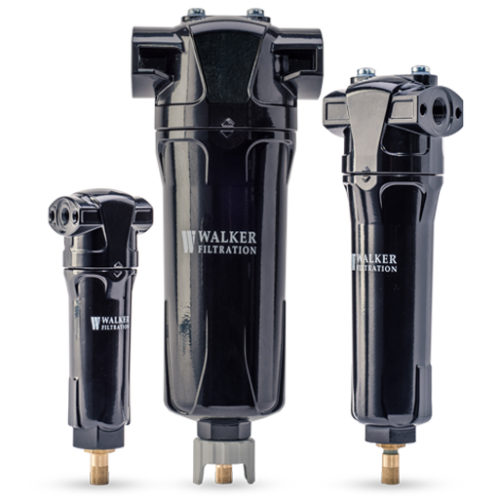

Alpha Water Separator

  • FEATURES & BENEFITS
  • ELEMENT TECHNICAL INFORMATION
  • FEATURES & BENEFITS

    No replacement components are required, making Walker Filtration’s Water Separators a viable and cost-effective solution for removing bulk water from compressed air.

    The custom engineered centrifugal module features unique vanes to eliminate points of low efficiency, and a vortex arrestor to stop re-entrainment – ensuring minimal operating pressure loss and maintaining excellent liquid removal, even at low velocities.

  • ELEMENT TECHNICAL INFORMATION

    Technical Specification

    Grade
    WS
    Minimum recommended operating temperature
    1°C 34°F
    Maximum recommended operating temperature
    80°C 176°F
    Maximum working pressure
    16 barg 232 psig
    Typical pressure loss at rated flow
    55 mbar 0.8 psig

The Ultimate in Filtration Performance

Unique Centrifugal Module

Removes 99% of bulk water even at low velocities.

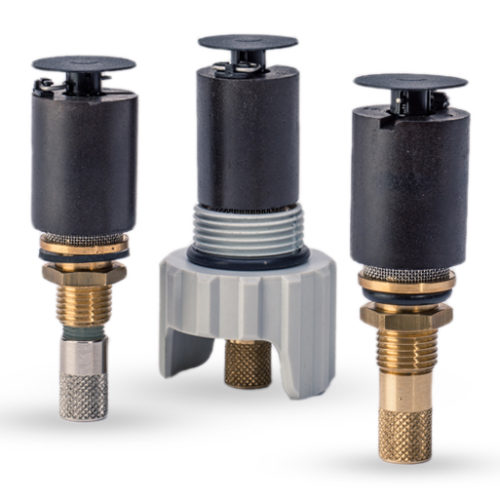

Externally Accessible Drain Valve

Eliminates the need to access the inside of the filter housing when servicing the drain.

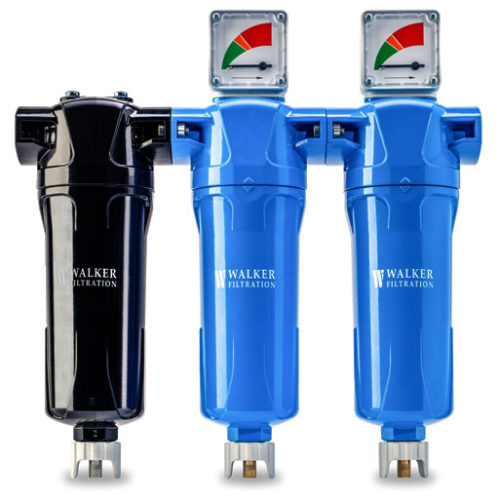

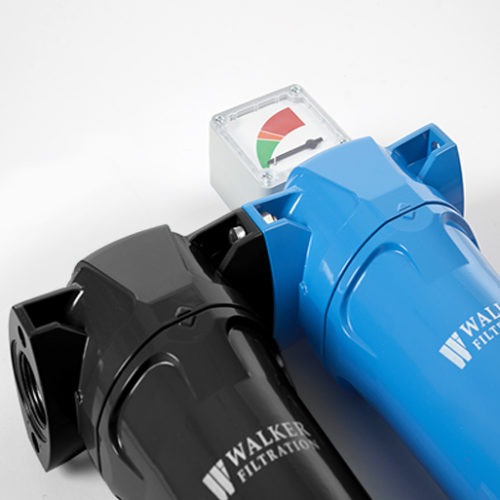

Modular Construction

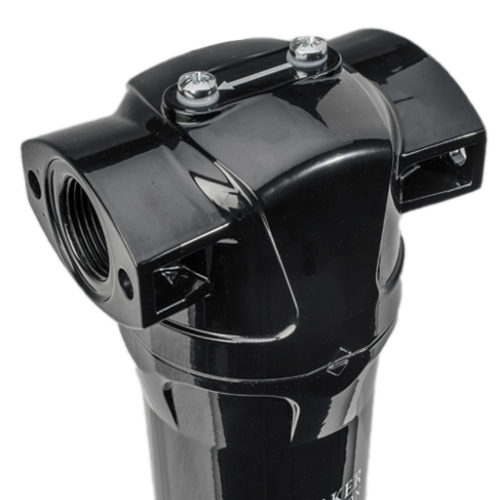

Low cost connecting kits and new filter head design enables easy close coupling assembly.

Cost Effective

No replacement components required.
