Alpha Particulate Filter

  • KEY FEATURES & BENEFITS
  • Element Technical Information
  • KEY FEATURES & BENEFITS

    With significantly reduced differential pressure, the Alpha element delivers optimal performance and low operational lifetime costs in reverse flow applications, reducing the need for system maintenance.

    Offered in a range of 18 models with connection sizes from 1/8” to 3” Rp (BSP Parallel), Rc (BSP Taper) and NPT, the Alpha boasts a maximum operating temperature of 120˚C (248˚F), improved maximum operating pressure of up to 20.7 barg (300 psig) and flow capacities up to 1500 SCFM (2550 Nm³/hr).

    With exceptional results in particle retention of up to 99.999%, and significantly reduced pressure loss, the Alpha Particulate Filter ensures total protection of manufacturing equipment from dust carryover.

    Available in a range of connection sizes from 1/8” to 3”, the Alpha Particulate Filters have a maximum temperature of 120˚C (248˚F) and increased operating pressure of 20.7 barg (300 psig).

  • Element Technical Information

    Element Technical Information

    Grade
    RX25
    RX5
    RX1
    RXA
    RAC
    Particle removal
    25 micron
    5 micron
    1 micron
    0.01 micron
    0.01 micron
    Maximum particle size class*
    -
    4
    3
    1
    1
    Maximum oil carryover at 20°C (68°F)
    -
    -
    -
    -
    0.003 mg/m³
    Pressure loss - clean & dry
    30 mbar 0.4 psi
    40 mbar 0.6 psi
    75 mbar 1.1 psi
    100 mbar 1.5 psi
    75 mbar 1.1 psi
    Pressure loss - element change
    12 mnths 8000 hours
    12 mnths 8000 hrs
    12 mnths 8000 hrs
    12 mnths 8000 hrs
    at least every 6 months
    Maximum temperature
    120°C 248°F
    120°C 248°F
    120°C 248°F
    120°C 248°F
    50°C*** 122°F**
    Maximum working pressure
    20.7 barg 300 psig
    20.7 barg 300 psig
    20.7 barg 300 psig
    20.7 barg 300 psig
    20.7 barg 300 psig
    Element end cap colour
    Black
    Green
    Red
    Blue
    Black

    * to ISO 8573-1:2010 ** Maximum recommended operating temperature 25°C (77°F)

The Ultimate in Filtration Performance

New Modular Filter

Low cost connecting kits and new filter head design enables easy close coupling assembly.

New Filtration Technology

New Alpha deep pleated media technology delivers a step change in performance.

Product Safety in Mind

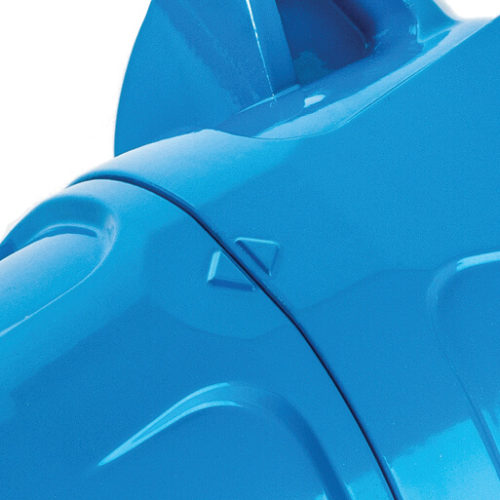

Lock indication arrows ensure effective sealing.



Market Leading Performance

Custom engineered filtration media delivers optimum performance in line with air quality standard ISO 8573-1: 2010.

Corrosion Protection

Internal and external electrophoretic paint finish followed by a tough exterior polyester powder coating.

Colour Coded Element End Caps

Easy and accurate grade identification.
