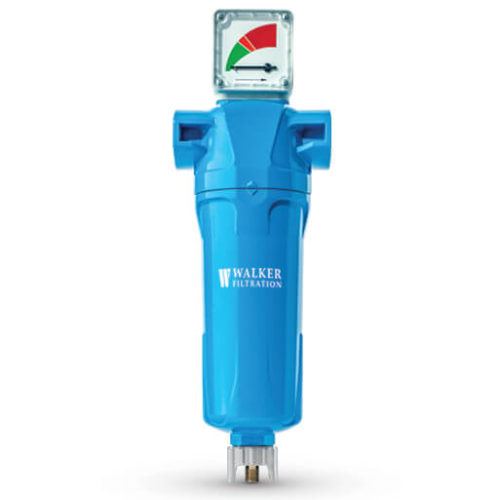

Alpha Coalescing Filter

  • KEY FEATURES & BENEFITS
  • Element TECHNICAL INFORMATION
  • KEY FEATURES & BENEFITS

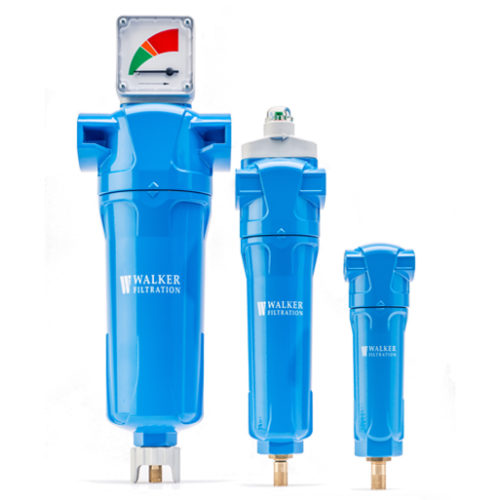

    Offered in a range of 18 models with connection sizes ranging from 1/8” to 3”, the Alpha Series has been third party tested and validated to provide a saturated differential pressure of <125 mbar across X1 and XA grades – proving to be our most advanced filter to date.

    With class leading performance and exceptional results in oil aerosol and particle retention, the Alpha delivers significantly reduced pressure loss and optimum filtration efficiencies for low operational and lifetime costs.

  • Element TECHNICAL INFORMATION

    ELEMENT TECHNICAL INFORMATION

    Grade
    X25
    X5
    X1
    XA
    AC
    Particle Removal
    25 micron
    5 micron
    1 micron
    0.01 micron
    0.01 micron
    Maximum particle size class*
    -
    4
    3
    1
    1
    Maximum oil content**
    -
    4
    3
    1
    1
    Maximum oil carryover at 20°C (68°F)
    10 mg/m³
    5 mg/m³
    0.3 mg/m³
    0.01 mg/m³
    0.003 mg/m³
    Pressure loss - clean & dry
    30 mbar 0.4 psi
    40 mbar 0.6 psi
    55 mbar 0.8 psi
    85 mbar 1.2 psi
    115 mbar 1.7 psi
    Pressure loss - saturated
    50 mbar 0.7 psi
    75 mbar 1.1 psi
    125 mbar 1.8 psi
    125 mbar 1.8 psi
    N/A N/A
    Pressure loss - element change
    12 mths 8000 hrs
    12 mths 8000 hrs
    12 mths 8000 hrs
    12 mths 8000 hrs
    at least every 6 months
    Maximum temperature
    80°C 176°F
    80°C 176°F
    80°C 176°F
    80°C 176°F
    50°C** 122°F**
    Maximum working pressure
    16 barg 232 psig
    16 barg 232 psig
    16 barg 232 psig
    16 barg 232 psig
    16 barg 232 psig
    Element end cap colour
    Black
    Green
    Red
    Blue
    Black

    * to ISO 8573-1:2010 ** Maximum recommended operating temperature 25°C (77°F)

The Ultimate in Filtration Performance

New Modular Filter

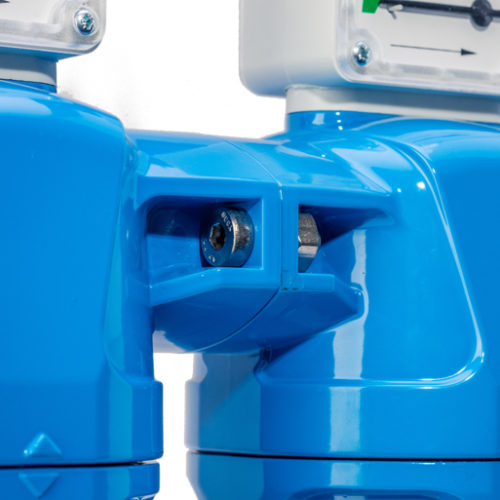

Low cost connecting kits and new filter head design enables easy close coupling assembly.

New Filtration Technology

Deep pleated media technology delivers a step change in performance.

New Externally Accessible Drain

Eliminates the need to access the inside of the filter housing when servicing the drain.

Market Leading Performance

Custom engineered filtration media delivers optimum performance in line with air quality standard ISO 8573-1: 2010.

Corrosion Protection

Internal and external electrophoretic paint finish followed by a tough exterior polyester powder coating.

Colour coded element end caps

Easy and accurate grade identification.
